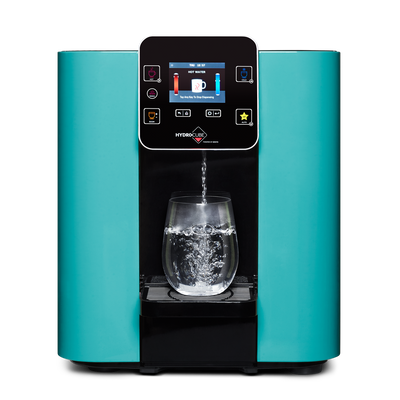

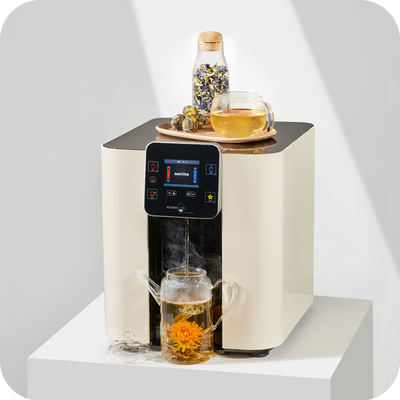

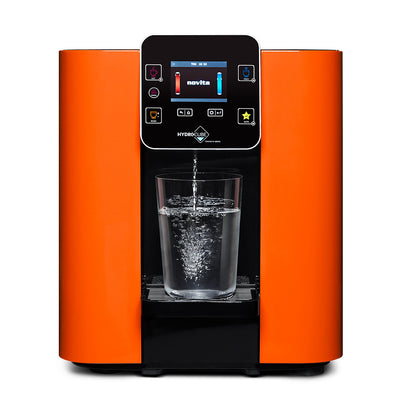

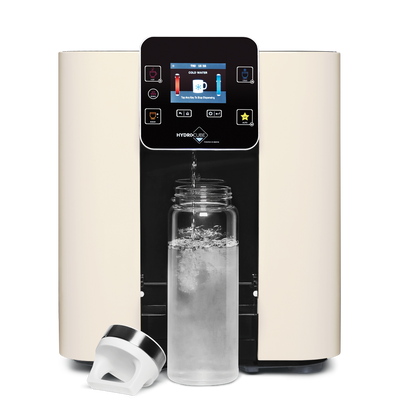

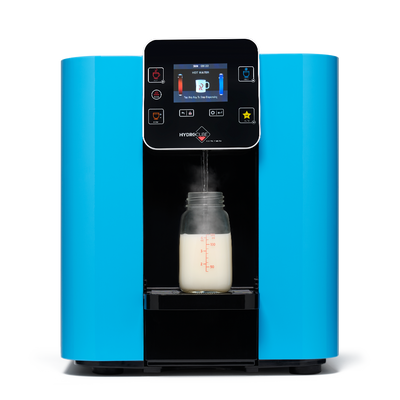

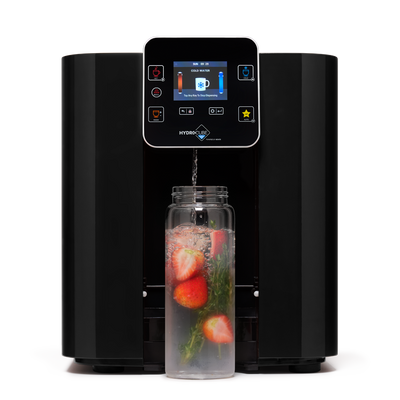

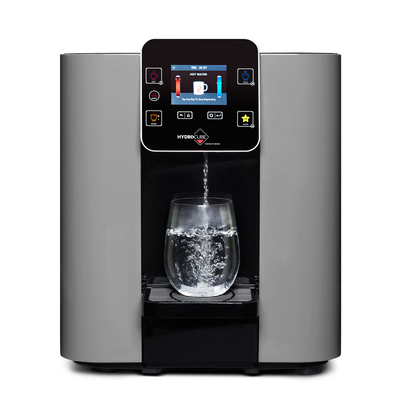

Trade-in Promotion - HydroCube™ Hot/Cold Water Dispenser W29i

HOT/COLD WATER DISPENSER

W29i

novita_w29_hotcold_water_01.jpg__PID:5ae766a7-dbec-4c1b-81f6-c38a611cb7b7

novita_w29_hotcold_water_02.jpg__PID:7f6cdb53-a05e-4cdf-8190-8aad848d5792

novita_w29_hotcold_water_03.jpg__PID:db53a05e-2cdf-4190-8aad-848d57927b3e

novita_w29_hotcold_water_04.jpg__PID:2cdf0190-8aad-448d-9792-7b3e7c547df4

novita_w29_hotcold_water_05_estore.jpg__PID:89c6ecff-8d60-4ea0-bd9a-8faeed278f86

novita_w29_hotcold_water_06.jpg__PID:b9d440ae-624e-4470-9ebe-badf7039634c

newW29i-estore-microsite.jpg__PID:5f17c175-0c34-4f34-a518-9a0b65ea2f28

novita_w29_hotcold_water_08.jpg__PID:624e5470-debe-4adf-b039-634c272241e8

novita_w29_hotcold_water_09.jpg__PID:5470debe-badf-4039-a34c-272241e8cb06

novita_w29_hotcold_water_10.jpg__PID:cb06eded-6bb8-4dc2-87fa-43ca109041cd

novita_w29_hotcold_water_11.jpg__PID:eded6bb8-8dc2-47fa-83ca-109041cd42dd

OLD RULES, REDEFINED.

Re-engineered with a revamped and simplified assembly, W29 gives you more for less, without compromising on performance. Equipped with features you desire, enjoy quality water instantly with Hot/Cold Water Dispenser W9 today.

Enjoy quality water instantly with novita HydroCube™ Hot/Cold Water Dispenser W9 that is compact to give you extra space on your countertop and simplified for your greater convenience. With a rapid boiling system and 1-touch auto dispensing option, you can dispense hot, cold and room temperature water almost instantly. Driven by an advanced ultra-hollow membrane and a 6-step filtration system, choose HydroPlus® filter for alkaline antioxidant water or HydroPure™ filter for purified energy water. Choose from 6 exciting colours and hydrate with quality water every day!

01
Extra
time

02
Additional space

03
More savings

04
quality water

With DIY EzTwist^® Filter,
You Don’t Have To

With DIY EzTwist^® Filter,
You Don’t Have To

With DIY EzTwist^® Filter,
You Don’t Have To

WHICH ONE BEST REPRESENT YOU?

MASCULINE
GLAZY BLACK

flamboyant
tango red

Fun loving
refreshing green

MINIMALIST
ELEGANT WHITE

ADVENTUROUS
SUNNY YELLOW

SOPHISTICATED
DIVINE RED

Get Yours Today!

HOT/COLD WATER DISPENSER W29i
Dimensions (W x D x H):	300 mm x 400 mm x 355 mm
Weight:	Approx. 16 Kg
Power Consumption:	Rated Power Consumption: 1,700 Watts Heating Power Consumption: 1,500 Watts Cooling Power Consumption: 138 Watts UV Lamp Power Consumption: 11 Watts
Voltage / Frequency:	230 V / 50 Hz
Water Supply:	Direct connection to piping
Refrigerant:	R134a
Heating Capacity:	15 Litres/Hour
Usage Heating Capacity (95°C):	1 Litre/ 4 Mins
Cooling Capacity:	5 Litres / Hour
Usage Cooling Capacity (6°C):	1 Litre/ 10 Mins
Water Tank Capacity:	• Hot Water: 1.3 Litres • Cold Water Tank: 1.4 Litres
Water Temperature:	• Hot Water Tank : 70°C to 98°C • Cold Water: 6°C to 16°C
Filters:	• HydroPlus^® Filter: 9.0 ± 0.5 • HydroPure™ Filter: 8.0 ± 0.5
ORP Reduction:	• HydroPlus^®Filter : Up to 100 mV to 200 mV • HydroPure™ Filter: Inherent from water source
Filtration Capacity:	• HydroPlus^® /HydroPure™ Filter (Due for replacement every 180 days - about 1800 litres) Based on average 10 litres a day usage • Advanced Ultraviolet Germicidal Lamp (Due for replacement every 360 days)

NOTE:
• pH and ORP reduction may vary by +/- 0.5 and +/- 150mV respectively, subjected to nature of inherent water source, piping conditions, water inflow rate, chlorine concentration and filter usage.
• Indicated pH readings are obtained based on pH 7.5 source water. All pH and ORP reduction values are attained based on quantitative sampling basis.
• pH and ORP reduction is subjected to natural depreciation.
• The water flow rate may vary subjected to nature of source water inflow pressure, distance from water source and remaining filter lifespan.

HOT & COLD WATER DISPENSER STANDARD INSTALLATION

HOT & COLD WATER DISPENSER FILTER REPLACEMENT

12 Months filter pack

REPLACEMENT GUIDE

W29i

Hot/cold

water dispenser

180 days - about 1,800 LITRES*

FILTER REPLACEMENT

Filter replacement notification prompts on the LCD screen and unit dispensing will be disabled when filter is due for replacement after every 180 days - about 1,800 litres* of water usage. (whichever comes first). Please replace the filter to ensure optimum water purification performance.

* Based on average 10 litres/day usage.

NOTE: • Filter replacement countdown reminder will start to prompt on the home screen when filter’s lifespan is left with 9 days.

01

Lift up the top lid from the designated lifting slot at the back of the unit.

02

Disconnect from the filter connection terminal. Hold onto the filter handle grip and exert some pressure to loosen the filter in anticlockwise direction.

03

Gently lift up the old filter. Hold on to the new filter handle grip then gently insert/lower/place the filter into the unit to avoid overstressing and damaging the filter base connector.

04

Hold onto the filter and exert some pressure to tighten it in clockwise direction. Ensure the filter is fitted snugly. Reconnect the filter connection terminal.

05

Replace the top lid back onto the unit.

06

Enter setting options to select Filter / UV Lamp Reset settings. Tap cp-W29 to reset Filter Lifespan. “Saved” will be shown on the LCD screen to indicate setting is saved.

07

Please rinse through the brand new filter before usage. To rinse, tap cp-w29 then hot followed by Cold 5 times each to dispense and discard the first 5 litres of hot and cold water respectively.

360 DAYS

ADVANCED ULTRAVIOLET GERMICIDAL LAMP REPLACEMENT

UV Lamp replacement notification prompts on the LCD screen when UV Lamp is due for replacement after every 360 days of usage. Please replace the UV Lamp to ensure optimum disinfecting performance.

NOTE: • UV Lamp replacement countdown reminder will start to prompt on the home screen when UV Lamp’s lifespan is left with 9 days.

01

Lift up the top lid from the designated lifting slot at the back of the unit.

02

Insert the UV unlock key into the designated slot. Exert some pressure to push the latch outwards to release the catch.

NOTE: • UV unlock key is located inside the styrofoam holder in the UV Lamp Packaging Box.

03

While the latch is pushed outwards, hold down and rotate the UV Lamp in anticlockwise direction to unlock the UV Lamp catch.

04

Gently lift up and remove the old UV Lamp vertically.

05

Gently insert the new UV Lamp vertically into the unit to prevent damages to the delicate UV Lamp’s component.

NOTE: • Always ensure the latch at the top of the UV Lamp is facing the front during assembly.

06

Rotate the UV Lamp in clockwise direction fully and you will hear a “click sound” when it is securely installed and locked in position.

07

Replace the top lid back onto the unit.

08

Enter setting options to select Filter / UV Lamp Reset settings. Tap cp-W29 to reset UV Lamp Lifespan. “Saved” will be shown on the LCD screen to indicate setting is saved.

NOTE: • Please refer to Page 22 of Operating Instructions Manual for full instructions to reset UV Lamp lifespan.

Cleaning and maintenance

For external maintenance, regularly use a damp cloth to wipe the surface to prevent accumulation of dust.

DO NOT use chemicals or aggressive solvent as these substances may discolour the unit & results in permanent stains.

REMOVABLe DRain TRAY

Empty the removable drain tray periodically to prevent overflow. Clean it once a week to prevent potential build-up of bacteria.

01

Pull out and empty the content in the removable drain tray.

02

Replace the emptied removable drain tray back onto the unit.

Trade-in Promotion - HydroCube™ Hot/Cold Water Dispenser W29i

HydroCube™Hot/Cold Water Dispenser W9

NOW SGD$1,999.00

usual SGD$2,399.00

To Kick Start, Get A Brand New Filter $180 + Standard Installation $60 + Admin Fee $30

HOT/COLD WATER DISPENSER

W29i

OLD RULES, REDEFINED.

01Extratime

02Additional space

03More savings

04quality water

With DIY EzTwist® Filter,You Don’t Have To

With DIY EzTwist® Filter,You Don’t Have To

With DIY EzTwist® Filter,You Don’t Have To

MASCULINEGLAZY BLACK

flamboyanttango red

Fun lovingrefreshing green

MINIMALISTELEGANT WHITE

ADVENTUROUSSUNNY YELLOW

SOPHISTICATEDDIVINE RED

HOT & COLD WATER DISPENSER STANDARD INSTALLATION

HOT & COLD WATER DISPENSER FILTER REPLACEMENT

12 Months filter pack

REPLACEMENT GUIDE

W29i

Hot/cold

water dispenser

180 days - about 1,800 LITRES*

01

02

03

04

05

06

07

360 DAYS

01

02

03

04

05

06

07

08

Cleaning and maintenance

REMOVABLe DRain TRAY

01

02

Compact & Simplified

Re-engineered with a revamped and simplified assembly. W9 gives you a more for less, without compromising on performance.

THE DIMENSIONS

W300

D370

H340

THE Weight

15.5

HydroCube™
Hot/Cold Water Dispenser W9

To Kick Start, Get A Brand New Filter $180
+ Standard Installation $60
+ Admin Fee $30

01
Extra
time

02
Additional space

03
More savings

04
quality water

With DIY EzTwist^® Filter,
You Don’t Have To

With DIY EzTwist^® Filter,
You Don’t Have To

With DIY EzTwist^® Filter,
You Don’t Have To

MASCULINE
GLAZY BLACK

flamboyant
tango red

Fun loving
refreshing green

MINIMALIST
ELEGANT WHITE

ADVENTUROUS
SUNNY YELLOW

SOPHISTICATED
DIVINE RED
